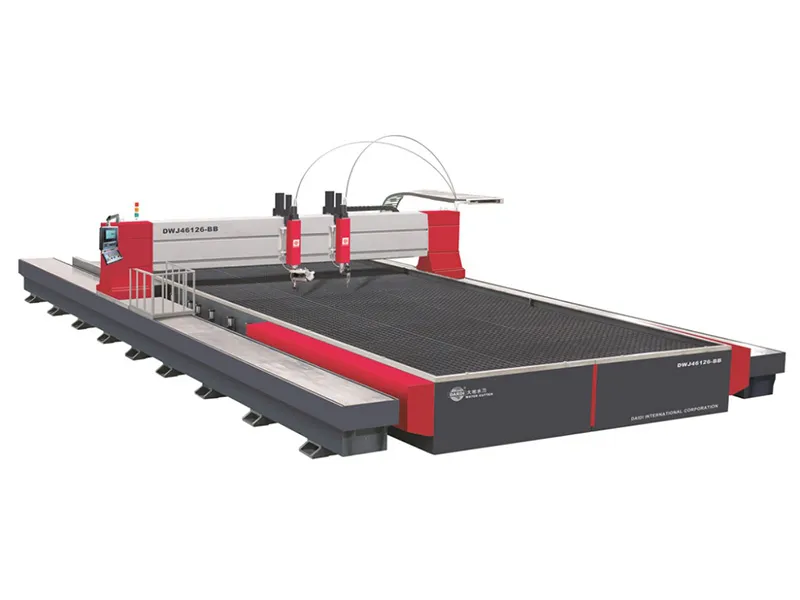

DWJ46126 Gantry Style 3-Axis Waterjet Cutting Machine
DWJ46126 Gantry Style 3-Axis Waterjet Cutting Machine
  • Speed: 20m/min
  • Cutting accuracy: ±0.15mm
  • Repeatability: ±0.025mm
  • Cutting table size: X-axis:4700mm, Y-axis:12700mm
  • Cutting stroke: X-axis:4600mm, Y-axis:12600mm, Z-axis:300mm
Parameters
Model DWJ46126
Cutting table size X-axis:4700mm
Y-axis:12700mm
Cutting stroke X-axis:4600mm
Y-axis:12600mm
Z-axis:300mm
Driving method AC servo motor
Repeatability ±0.025mm
Speed 20m/min
CNC control system ESA
Cutting accuracy ±0.15mm
Power 220/380/415VAC, 3P, 50/60HZ

Machine dimensions are customizable according to your requirements.
