Dardi’s waterjet intensifier pumps are suitable for both around-the-clock processing operations and small prototype jobs. One thing to note is that these pumps are easy to operate and maintain.
These intensifier pumps can filter and then pressurize ordinary water to 300~400Mpa so as to provide continuous high-pressure water for waterjet cutting machines.
We provide various series of intensifier pumps that will be described in the section below. You will choose from them according to the types and thickness of the cutting material, the surface quality, and cutting speed needed for your operation. You can contact us for a free consultation.

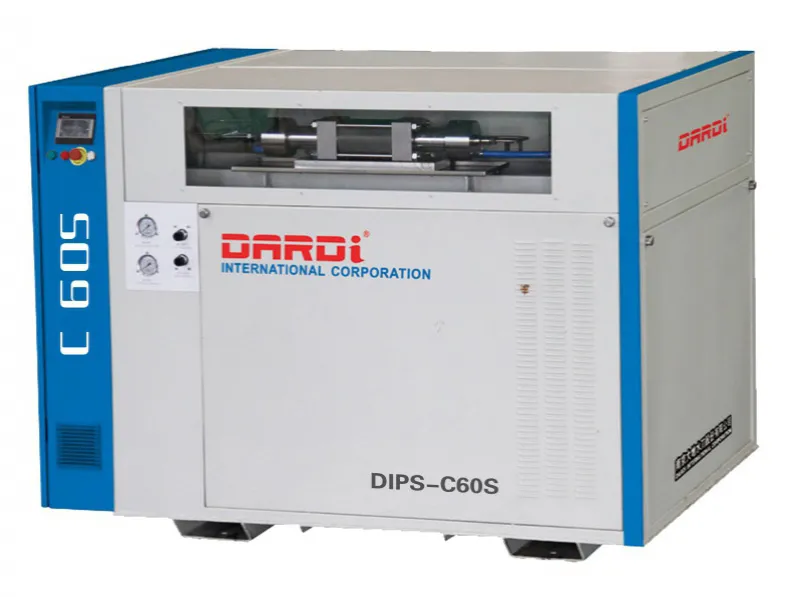

The S series waterjet intensifier pump is equipped with a power unit composed of a servo motor and constant-flow pump. It is designed to precisely control the pressure and flow of the water and normalize pressure fluctuations, minimizing the them to less than 5%. This can greatly improve waterjet cutting effects.
This series waterjet intensifier pump provides a two-stage pressure setting of 10~400MP which increases the range of material types it can cut. It can precisely control the flow of water and has the advantages of small overflow and low heat, minimizing the need for additional cooling systems and prolongs the service life of the hydraulic components.
After the cutting head has been closed, the system of this series of waterjet intensifier pump can maintain water pressure and its motor will slow down the speed to an idle state to reduce energy consumption. Its energy use is 20% lower than constant pressure pumps.
This series waterjet intensifier pump is operated by touch screen. All the operating statuses and parameters and warnings are shown on this screen.
Model | ||
Power | 42kW/56.3hp | 52KW/69.7hp |
Max pressure | 4,000Bar/58,015psi | 4,000Bar/58,015psi |
Max output flow | 3.7lpm/0.98gpm | 4.5lpm/1.19gpm |
Maximum orifice | 0.33mm | 0.40mm |
Intensifier model | G7A | G11 |
Attenuator capacity | 1L | 1L |

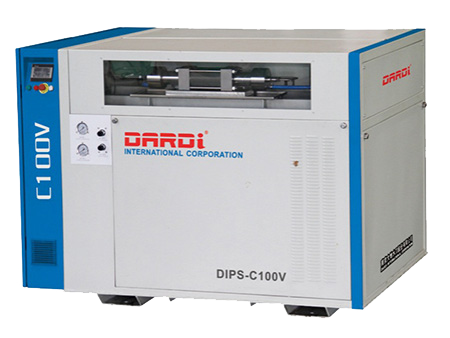

The V series waterjet pump is equipped with a power unit made up of a three-phase asynchronous motor made by Siemens and constant pressure plunger pump made by Rexroth. It uses a pressure regulating valve to regulate the water pressure. The constant pressure plunger pump can automatically regulate the water pressure to ensure its pressure fluctuation is less than 10% to effectively improve its waterjet cutting effectiveness.
This series waterjet pump provides a two-stage pressure setting including low pressure and high pressure. The stage of low pressure is suitable for cutting fragile and brittle materials thanks to its low pulse cutting performance that protects them from damage.
Model | |||
Power | 37kW/39.6hp | 45kW/60.3hp | 37kW/39.6hp *2 |
Max pressure | 4,000Bar/58,015psi | 4,000Bar/58,015psi | 4,000Bar/58,015psi |
Max output flow | 3.7lpm/0.98gpm | 4.5lpm/1.19gpm | 7.4lpm/9.92gpm |
Maximum orifice | 0.35mm | 0.40mm | 0.45mm |
Intensifier model | G7A | G11 | G7A*2 |
Attenuator capacity | 1L | 1L | 2L |
Overall dimensions | 1641*1241*1125mm | 2002*1500*1452mm | 2002*1500*1452mm |

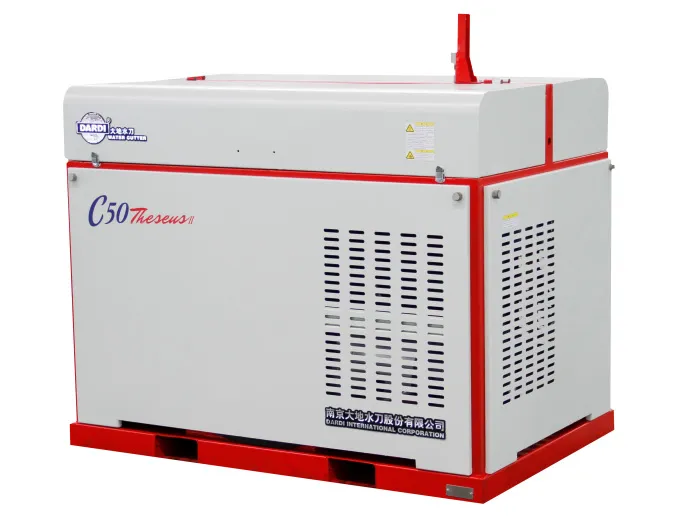

The T series waterjet pump features a simple structure that is stable and inexpensive to maintain. It serves as a highly cost-effective pumping solution.
The power unit of the T series waterjet pump is composed of a three-phase asynchronous motor and manual control variable displacement pump. It uses a relief valve to control oil pressure of the system to regulate the water pressure. Its pressure fluctuation is less than 15%.
Model | |||
Power | 30kW/40.2hp | 37kW/39.6hp | 45kW/60.3hp |
Max pressure | 3,800Bar/55,114psi | 3,800Bar/55,114psi | 3,800Bar/55,114psi |
Max output flow | 3.4lpm/0.90gpm | 3.7lpm/0.98gpm | 4.5lpm/1.19gpm |
Maximum orifice | 0.33mm | 0.35mm | 0.40mm |
Intensifier model | G9A | G9A | G11 |
Attenuator capacity | 1L | 1L | 1L |
Overall dimensions | 1740*970*1230mm | 1800*1150*1380mm | 1800*1150*1380mm |
