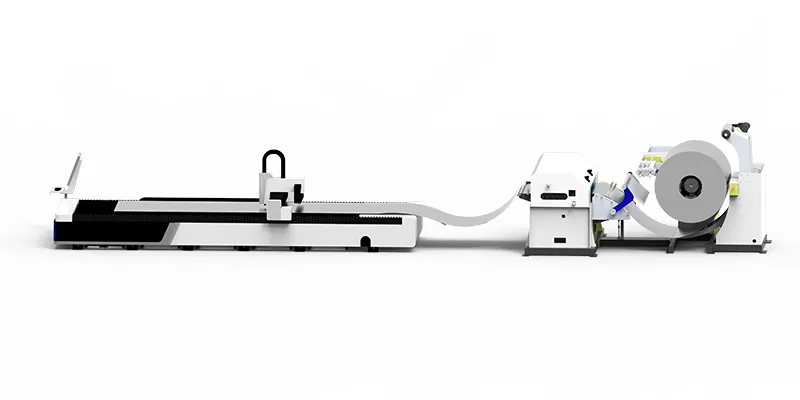

Fiber Laser Cutting Machine with Decoiler, BFRF Series
Fiber Laser Cutting Machine with Decoiler, BFRF Series
Applicable Materials

This fiber laser cutting machine is ideal for processing various types of metal coils, including cold-rolled, hot-rolled, stainless steel, tin-plated, and pickled coils. It’s widely used in industries that require high-volume sheet processing, such as cabinet manufacturing, office furniture production, environmental equipment, electrical enclosures, and HVAC systems.

Features
  • The fiber laser cutter with decoiler features an open design that allows for easy operation, smooth transmission, and high precision.
  • It reduces labor costs and increases efficiency by enabling continuous coil feeding and cutting, optimizing material utilization.
  • The production line can be customized to meet specific requirements, offering flexibility and a high degree of automation.
Detailed Parameters of Available Models
Model 3015 4015 6015
Working area (mm) 3000*1500 4000*1500 6000*1500
Z-axis travel(mm) 150 150 150
X/Y-axis positioning accuracy(mm) ±0.03 ±0.03 ±0.03
X/Y-axis repositioning accuracy(mm) ±0.03 ±0.03 ±0.03
X/Y axis maximum speed (m/min) 120 120 120
Unwinding thickness (mm) ≤2 ≤2 ≤2
Unwinding width (mm) ≤1500 ≤1500 ≤1500
