High Pressure Water Jetting Pump Unit

Backed by 20 years of experience in the development of high-pressure water-jet technology, DARDI has developed high pressure water jet pumps for removal of old paint, rubber, chemicals and other heavy build up without causing surface damage. This equipment is also ideal for completing special processes on stone surfaces

Our high-pressure water jetting pump unit is equipped with a large flow, high pressure pump driven using an electric motor or diesel unit to pressurize water flow to 4000 psi. The multiple steam, multiple angle and multiple strength water flow is emitted from the gem nozzles for a highly efficient object surface cleaning and easy access to hard to reach areas such as complicated pipelines.

By using an extremely high-pressure water cleaning, users can effectively clean industrial workshops with dust in the air without having to enclose the space. This assists in creating an environment with no risk of contamination to your precision equipment. This high-pressure water cleaning ensures surface painting is easier, and meets NACE 5/SSPC-SP 12 specifications.

Features
  • Ultra high-pressure water cleaning is a physical cleaning method that creates no harmful substances or causes secondary pollution such as chemical contamination.
  • The water current pressure and size is freely adjustable according to your applications, ensuring users obtain the best cleaning result with no surface damage.
  • Ultra high-pressure water cleaning provides a quick and thorough cleaning effect. By using it, the cleaning rate of the heat exchanger exceeds 95%, while the descaling rate for boilers also exceeds 95%. Rust removal of ship surfaces reaches Sa2.5.
  • The high-pressure water jet will clean objects with complex shapes and sizes, even in narrow spaces and harsh environments.
  • The water jet pump unit saves energy and is environmentally friendly with only 1/3 the cost of chemical cleaning.

Shown here are some of our water jet pump units. We will design these water jet pumps according to specific customer requirements.

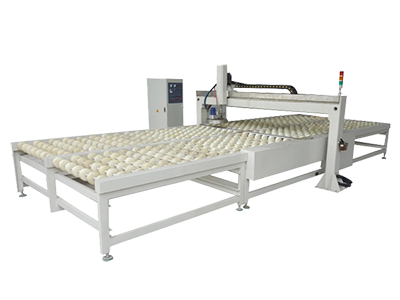

    1. Waterjet Hydrofinish
    2. Waterjet Hydrofinish Waterjet hydrofinish equipment is designed to process material surfaces with an extremely high-pressure waterjet. This waterjet will erode surfaces, break crystal and open stone pores, all with an adjustable volume.
    Read More

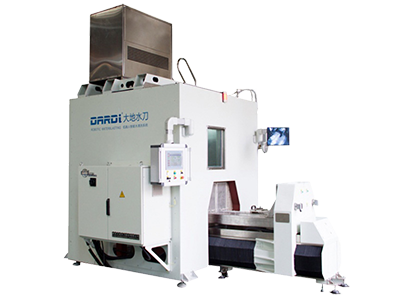

    1. Waterjet Stripping System
    2. Waterjet Stripping System Water jet stripping systems use high pressure water jets at different angles to remove coatings and burrs, wash precision parts and sand metal or non-metal material surfaces.
    Read More

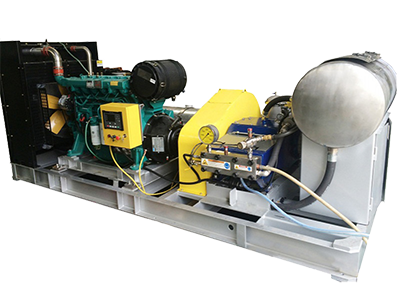

    1. Water Jet Cleaning
    2. Water Jet Cleaning This high-pressure water jet cleaning machine uses a high-speed water to remove dirt and other contaminants from a material surface. It uses water as the medium and is equipped with either an electric motor or diesel unit to ensure a water flow pressure of up to 4,000 psi (280Mpa).
    Read More
Optional
High Pressure Water Jetting Pump Unit
Pumps
Type Power Pressure(Mpa) Flow(Lpm) Dimension(mm) Weight(Kg)

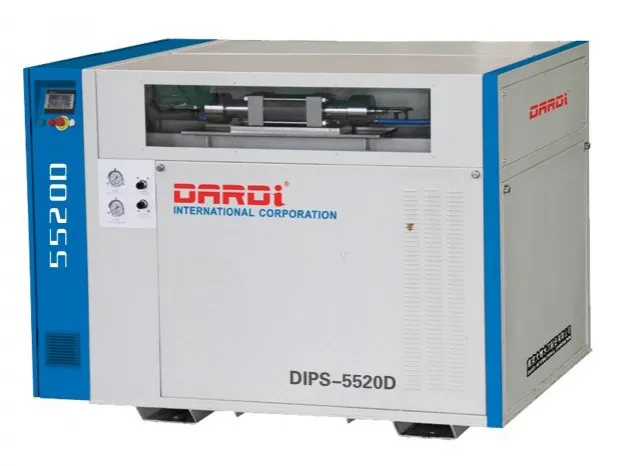

DIPS5520D 55kw/75Hp 200 12 2000x1500x1450 2000
High Pressure Water Jetting Pump Unit

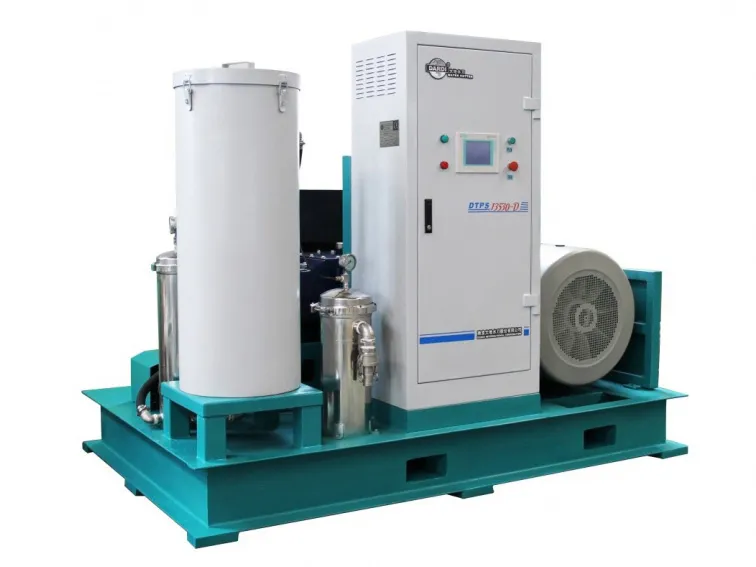

Plunger pump（driven by electric motor）
Type Power Pressure(Mpa) Flow(L/min) Dimension(mm) Weight(Kg)
DTPS10015-D-75 75kw/100Hp 140 28 2400x1550x1870 3300
DTPS13530-D -110 100kw/135Hp 280 19.5 2400x1550x1870 3500
DTPS27030-D-200 200kw/270Hp 280 38 2800x1750x1891 4500
High Pressure Water Jetting Pump Unit

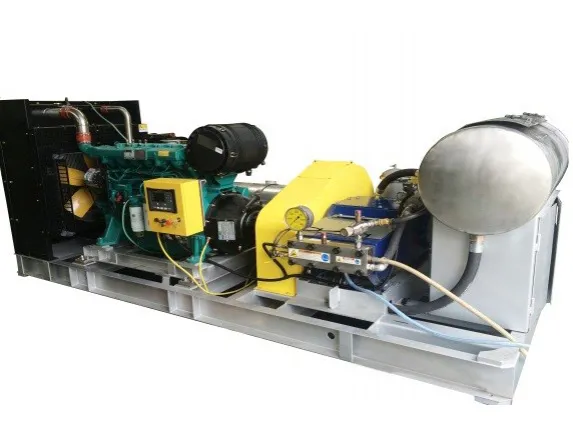

Plunger pump（driven by diesel engine）
Type Power Pressure(Mpa) Flow(L/min) Dimension(mm) Weight(Kg)
DTPS13530-C 100kw/135Hp 280 19.5 2400x1550x1870 3500
DTPS27030-C 200kw/270Hp 280 38 2800x1750x1891 4500
Application
Industry Applications Pressure(bar)
Aviation Airplane runway cleaning, degreasing, degumming, aircraft paint removal 400~700
Aluminum Clean the tank, filter screen, mill, cesspool, etc. 500~1400
Can Car body paint and dross removal, chassis and tank pre-processing before painting 500~700
Brewing Clean the fermenter, boiler, and manifold. Remove fermentation and precipitate in pipeline 350~700
Cement Remove grease and cement scale from fence, floor, outer wall of pipe, production equipment. Remove the scale layer from hearth, preheater, rotary kiln, etc. 400~700
Chemical, Pharmaceutical Clean and decontaminate the boiler, heat exchanger, tank, valve, pipeline, evaporator, reactor, electrolytic cell, filter. 250~1400
Construction Remove the pollutants such as dirt, asphalt, oil stain, tar, cement, and glue from vehicle, mixing tank, paving machine, asphalt sprinkler. 350~700
Food processing Remove the grease, dirt, and residue from the kettle, mixing tank, conveyor, evaporator, heat exchange, etc. 350~700
Foundry Remove sand from castings, remove metal oxide layer. 500~1000
Highway Remove the grease, cement, and asphalt from road construction equipment. Wash the bridge, road marking, road, etc. 200~2500
Ship Remove dirt, marine organism attachment, rust from ship hull, drilling platform, dock, tank, boiler, heat exchanger, etc. 350~2500
Meat processing Remove the grease, bloody, and soot from oven, blender and barrel. 300~500
Machinery manufacturing Remove the Zapi, rust layer, slag, burr and more from container, pipeline, tank. 700~1400
Mining Wash the minecart, conveyor, and production line. Dredge the equipment and remove the coal, stone, sludge, grease, etc. 500~700
Municipal engineering Dredge the sewer, clean the building and public health facilities, remove the calcium carbon scale in water treatment plant. 60~350
Oil field Clean the paraffin and crude oil residue in drilling platform and tank. Remove the dirt in casing drilling. 350~1400
Petrochemical, rubber Remove the dirt in interior wall and exterior wall of the equipment and container. Remove the crude oil residue, tar, precipitate, rubber, emulsion in heat exchanger, cooling tower and coke oven. 500~1400
Power station Remove the radioactive dirt in nuclear fuel chamber. Wash the boiler, heat exchanger, superheater, evaporator, and steam turbine blade. 500~1400
