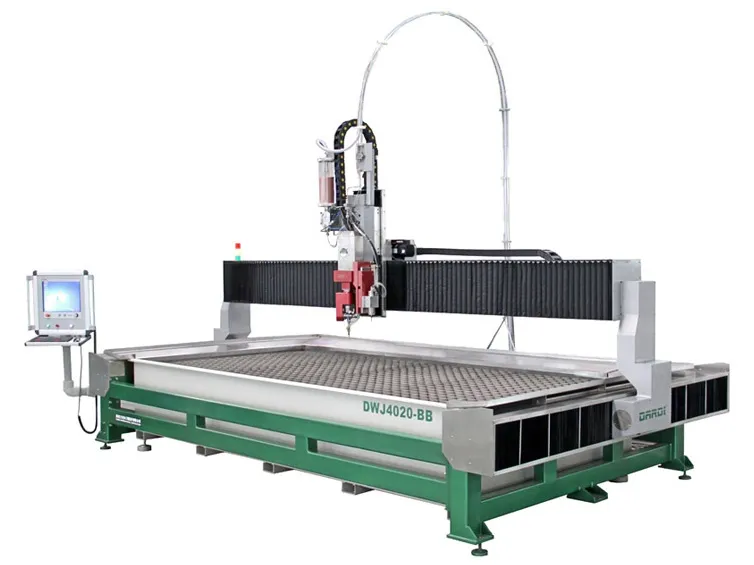

DWJ4020-BB Gantry Style 5-Axis Waterjet Cutting Machine
DWJ4020-BB Gantry Style 5-Axis Waterjet Cutting Machine
  • Speed: 20m/min
  • Cutting accuracy: ±0.1mm
  • Repeatability: ±0.025mm
  • Cutting table size: X-axis: 4200mm, Y-axis: 2200mm
  • Cutting stroke: X-axis: 4000mm, Y-axis: 2000mm, Z-axis: 210mm/310mm
Parameters
Model DWJ4020
Cutting table size X-axis:4200mm
Y-axis:2200mm
Cutting stroke X-axis:4000mm
Y-axis:2000mm
Z-axis:210mm/310mm
C-axis(rotation around the Z-axis) ±200°
A-axis(angle from perpendicular) 90°
Driving method AC servo motor（YASKAWA）
Control method ESA
Cutting accuracy ±0.1mm
Power 220/380/415VAC, 3P, 50/60HZ
Repeatability ±0.025mm
Speed 20m/min
