3-Axis Waterjet Cutting Machine | Waterjet Manufacturer

The 3-axis waterjet cutting machine completes two-dimensional cutting, including horizontal and vertical cutting.

The cutting head moves along an X and Y axis, while the Z axis height is adjustable to allow for cutting of thick materials or materials with an uneven surface.

This type of waterjet cutting machine is ideal for quickly manufacturing different material parts.

Features

1. Long Stroke Cutting

The 3-axis waterjet cutting machine has a stroke of more than 3m and features a feed nut structure to ensure the reliability.

2. Reliable Machining Accuracy

It uses a high-quality ball screw and guide rail to ensure the high precision of parts processing. It features smooth transmission and long service life.

3. Safe Use

The software stroke limit is reliable and will ensure safe use of the waterjet cutting machine.

Available Models

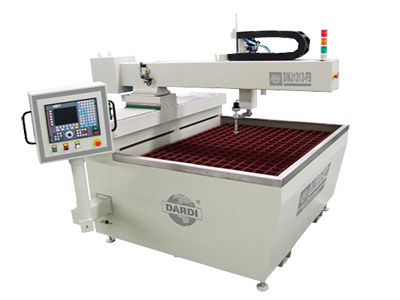

2. DWJ1313 Flying Bridge Style 3-Axis Waterjet Cutting Machine
  1. Speed: 10m/min
  2. Accuracy: ±0.10mm
  3. Repeatability: ±0.025mm
  4. Size: X-axis:1600mm, Y-axis:2600mm
  5. Cutting Area:
    X-axis:1300mm Y-axis:1300mm Z-axis:150mm
View All

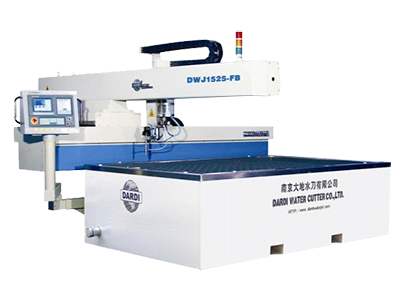

2. DWJ1525 Flying Bridge Style 3-Axis Waterjet Cutting Machine
  1. Speed: 20m/min
  2. Accuracy: ±0.10mm
  3. Repeatability: ±0.025mm
  4. Size: X-axis:1400mm, Y-axis:1400mm
  5. Cutting Area:
    X-axis:1500mm, Y-axis:2500mm, Z-axis:150mm
View All

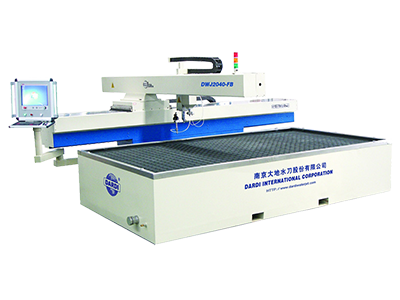

2. DWJ2040 Flying Bridge Style 3-Axis Waterjet Cutting Machine
  1. Speed: 15m/min
  2. Cutting Accuracy: ±0.10mm
  3. Repeatability: ±0.025mm
  4. Cutting table size: X-axis:2100mm, Y-axis:4100mm
  5. Stroke: X-axis:2000mm, Y-axis:4000mm, Z-axis:210mm
View All

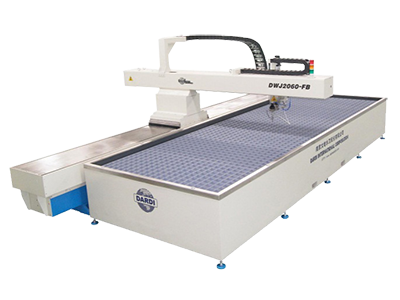

2. DWJ2060 Flying Bridge Style 3-Axis Waterjet Cutting Machine
  1. Speed: 15m/min
  2. Cutting accuracy: ±0.15mm
  3. Repeatability: ±0.025mm
  4. Cutting table size: X-axis:2100mm, Y-axis:6100mm
  5. Stroke: X-axis:2000mm, Y-axis:6000mm, Z-axis:210mm
View All

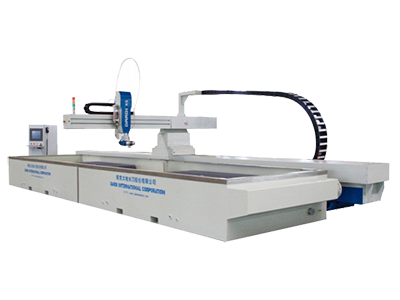

2. DWJ2080 Flying Bridge Style 3-Axis Waterjet Cutting Machine
  1. Speed: 15m/min
  2. Cutting accuracy: ±0.15mm
  3. Repeatability: ±0.025mm
  4. Cutting table size: X-axis:2100mm, Y-axis:6100mm
  5. Cutting stroke: X-axis:2000mm, Y-axis:8000mm, Z-axis:210mm
View All

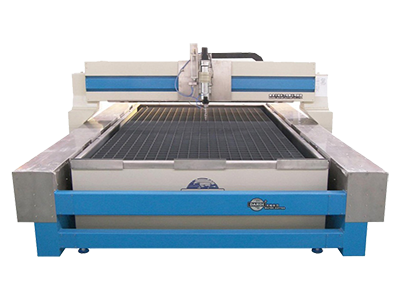

2. DWJ3060 Gantry Style 3-Axis Waterjet Cutting Machine
  1. Speed: 20m/min
  2. Cutting accuracy: ±0.15mm
  3. Repeatability: ±0.025mm
  4. Cutting table size: X-axis:3100mm, Y-axis:6100mm
  5. Cutting stroke: X-axis:3000mm, Y-axis:6000mm, Z-axis:300mm
View All

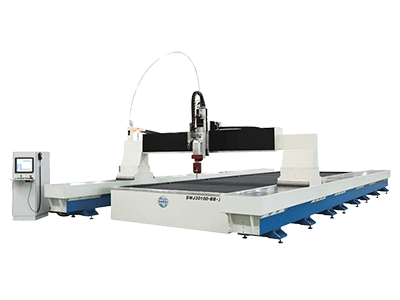

2. DWJ30100 Gantry Style 3-Axis Waterjet Cutting Machine
  1. Speed: 20m/min
  2. Cutting accuracy: ±0.15mm
  3. Repeatability: ±0.025mm
  4. Cutting table size: X-axis:3100mm, Y-axis:10100mm
  5. Cutting stroke: X-axis:3000mm, Y-axis:10000mm, Z-axis:300mm
View All

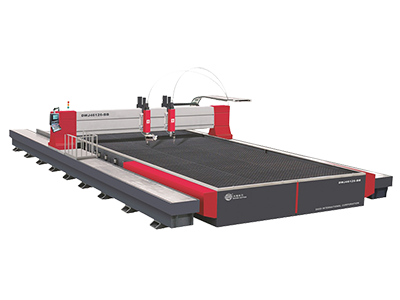

2. DWJ46126 Gantry Style 3-Axis Waterjet Cutting Machine
  1. Speed: 20m/min
  2. Cutting accuracy: ±0.15mm
  3. Repeatability: ±0.025mm
  4. Cutting table size: X-axis:4700mm, Y-axis:12700mm
  5. Cutting stroke: X-axis:4600mm, Y-axis:12600mm, Z-axis:300mm
View All

Our waterjet cutting machine is available in a wide array of configurations with different system parts and accessories to choose from, allowing users to easily customize the waterjet cutting machine according to their needs.

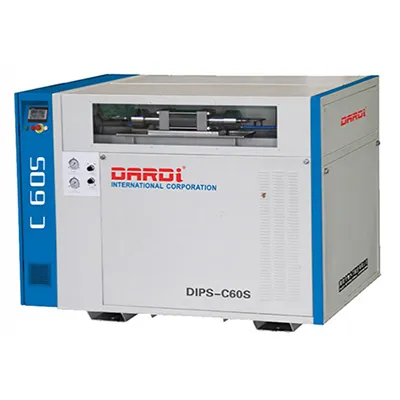

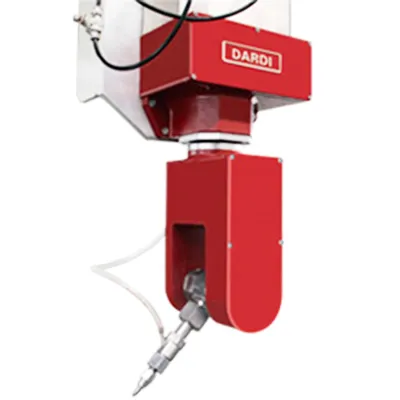

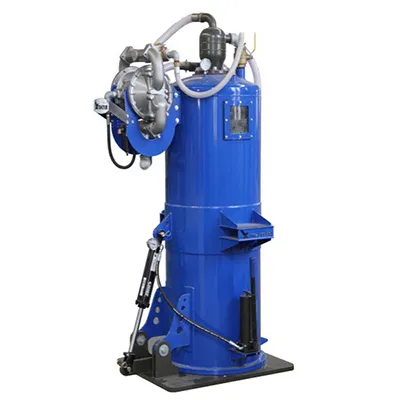

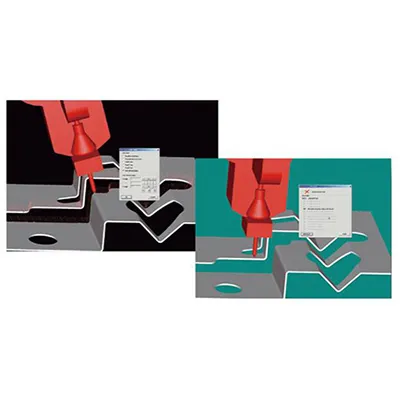

Core Component Options
