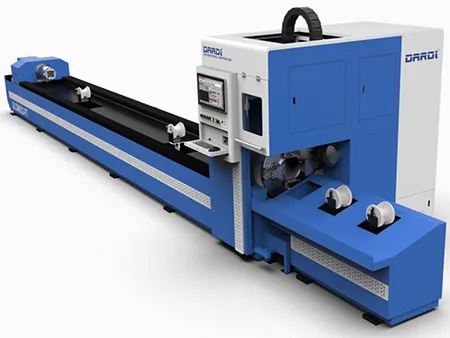

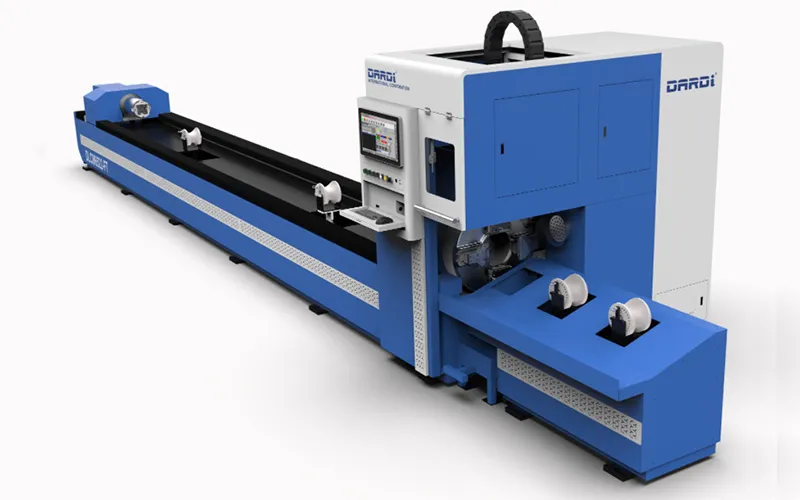

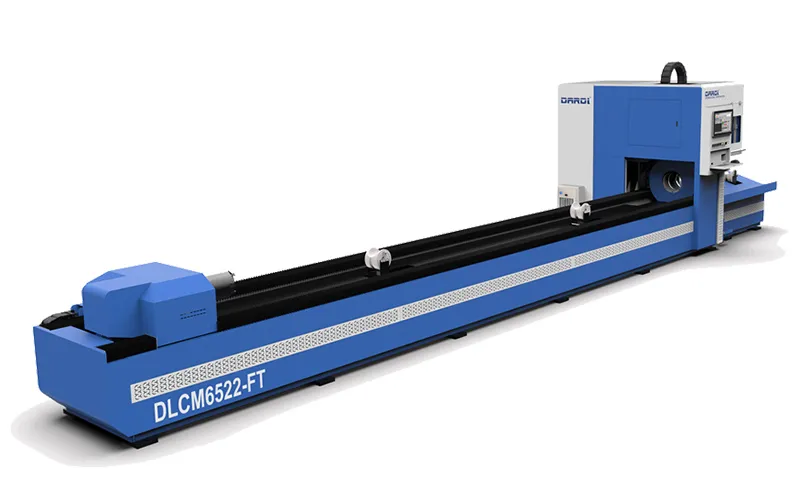

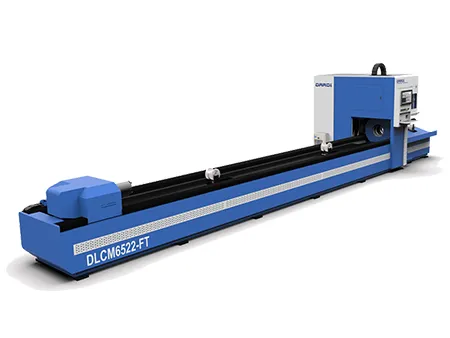

Fiber Laser Tube Cutting Machine, FT Series
Fiber Laser Tube Cutting Machine, FT Series
Fiber Laser Tube Cutting Machine, FT Series Fiber Laser Tube Cutting Machine, FT Series

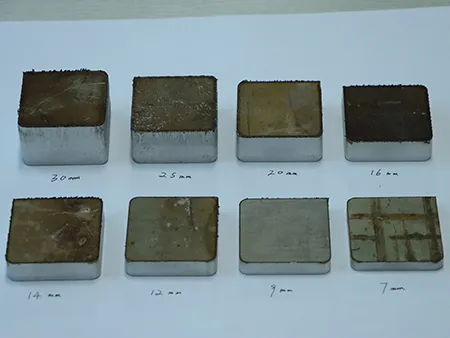

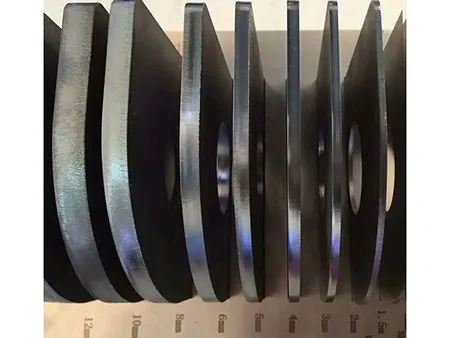

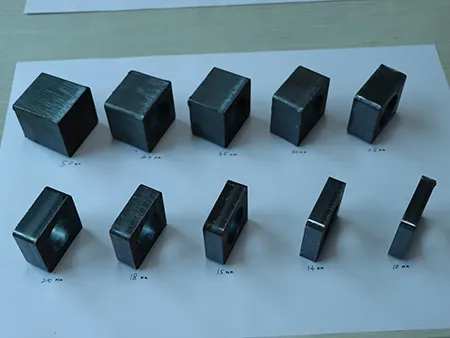

Applicable Materials

Our fiber laser machines excel in cutting tubes of varying thicknesses, making them indispensable in a wide array of industries. From manufacturing components for fitness equipment and oil pipelines to precision cutting for construction and agricultural machinery, these machines deliver reliable performance. They are also widely used in automotive manufacturing and even in home decoration projects, offering versatility and precision for diverse applications.

  • Fiber Laser Tube Cutting Machine, FT Series
  • Fiber Laser Tube Cutting Machine, FT Series
  • Fiber Laser Tube Cutting Machine, FT Series
Features
  • Features a self-centering pneumatic chuck designed to protect thin wall tubes, ensuring secure clamping without compromising the surface integrity or causing deformation.
  • Experience enhanced productivity with powerful dynamic performance, allowing for faster and more efficient cutting operations.
  • Versatility is at the core, with the ability to handle various tube types, from round and rectangular to special shapes like I-beams and channel steel, delivering high-speed, precise cuts every time.
  • To optimize the workflow, the laser cutter can be equipped with an automatic loading and unloading system, cutting down on labor costs while increasing overall efficiency.
Main Parameters
  • Laser power: 1kW-4kW
  • Operating voltage: 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz
  • Machine power: 9kW
  • Max. acceleration: 0.8G
  • Operating temperature: 0℃~40℃
  • Operating humidity: <90% Non-condensing
Detailed Parameters of Available Models
Model 6020 6030
Max. tube length (mm) 6000 6000
Round tube cutting diameter (mm) ⌀20-220 ⌀20-350
Rectangular tube edge length (mm) 20-140 20-250
X-axis travel (mm) 200 200
Y-axis travel (mm) 6000 6000
Z-axis travel (mm) 350 350
XY/U axis maximum speed (m/min) 90 90
A/B/C max. rotation speed (rpm) 90 90
X/y-axis positioning accuracy ±0.03 ±0.03
X/y-axis repositioning accuracy ±0.03 ±0.03
Tube loading range (mm) 1000-6000 1000-6000
Cut size (mm) ≤2000 ≤2000
