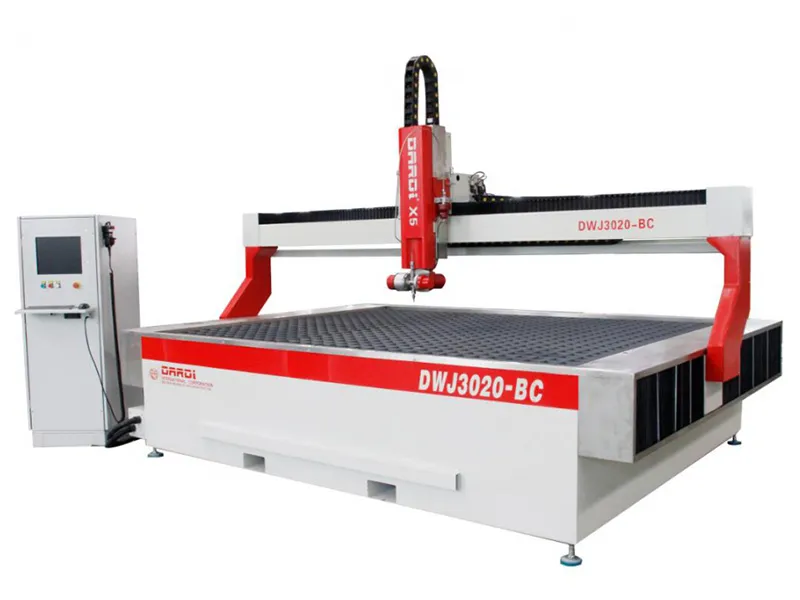

DWJ3020-BC Gantry Style 5-Axis Waterjet Cutting Machine
DWJ3020-BC Gantry Style 5-Axis Waterjet Cutting Machine
  • Speed: 20m/min
  • Cutting accuracy: ±0.1mm
  • Repeatability: ±0.025mm
  • Cutting table size: X-axis:3200mm；Y-axis:2200mm
  • Cutting stroke: X-axis:3000mm Y-axis:2000mm Z-axis:210mm/310mm
Parameters
Model DWJ3020
Cutting table size X-axis: 3100mm
Y-axis: 2100mm
Cutting stroke X-axis: 3000mm
Y-axis: 2000mm
Z-axis: 200mm/300mm/500mm
C-axis(rotation around the Z-axis) ±200°
A-axis (angle from perpendicular) ±10°
B-axis(beveling angle) ±10°
CNC control system ESA
Cutting accuracy ±0.1mm
Power 220/380/415VAC, 3P, 50/60HZ
Repeatability ±0.025mm
Speed 20m/min
